| 氣動平底放料閥 |
 |
|
| 產品描述 |
|
|
氣動料漿（放料）閥是本公司開發研制的氧化鋁工業用閥門新產品。采用氣動驅動方式，閥門既可以人工操作，更適合安裝在人力無法操作的位置，便于自動控制，安全、方便、精確到位。
安裝位置：槽壁上
| 序號No. |
零件名稱Accessory name |
材質Material |
| 1 |
閥瓣Disc |
ASTM A105+STL |
| 2 |
放料口Flange |
ASTM A105 |
| 3 |
閥座Seat |
ASTM A105+STL |
| 4 |
閥桿Stem |
ASTM A276-420 |
| 5 |
閥體Body |
ASTM A216-WCB |
| 6 |
墊片Gasket |
柔性石墨+不銹鋼flexible graphite+stainless steel |
| 7 |
閥蓋Bonnet |
ASTM A216-WCB |
| 8 |
填料Packing |
柔性石墨Flexible Graphite |
| 9 |
支撐桿Supporting rod |
ASTM A276-420 |
| 10 |
汽缸Cylinder |
45 |
| 11 |
密封圈Sealing ring |
PTFE |
| 12 |
活塞Piston |
HT450 |
| 13 |
汽缸蓋Cylinder lid |
ASTM A216-WCB |
| 14 |
活塞桿Piston rod |
ASTM A276-420 |
| 15 |
閥桿螺母Stem nut |
B150C61900 |

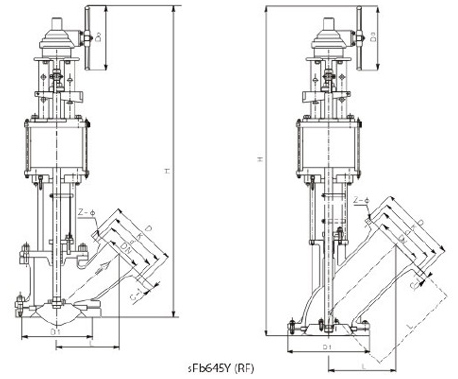

| DN/規格Specification |
D |
K |
Z-Φ |
d |
C-f |
D1 |
D0 |
H |
| mm |
in |
| sFb645Y-10C(RF) |
| 100 |
4 |
220 |
180 |
8-18 |
156 |
22-2 |
250 |
250 |
810 |
| 125 |
5 |
250 |
210 |
8-18 |
184 |
22-2 |
|
250 |
|
| 150 |
6 |
285 |
240 |
8-22 |
211 |
24-2 |
270 |
350 |
930 |
| 200 |
8 |
340 |
295 |
8-22 |
266 |
24-2 |
375 |
350 |
1600 |
| 250 |
10 |
395 |
350 |
12-22 |
319 |
26-2 |
470 |
350 |
1850 |
| 300 |
12 |
445 |
400 |
12-22 |
370 |
26-2 |
510 |
450 |
1850 |
| 350 |
14 |
505 |
460 |
16-22 |
429 |
26-2 |
570 |
450 |
1960 |
| 400 |
16 |
565 |
515 |
16-26 |
480 |
26-2 |
|
550 |
|
| 450 |
18 |
615 |
565 |
20-26 |
530 |
28-2 |
|
550 |
|
| 500 |
20 |
670 |
620 |
20-26 |
582 |
28-2 |
|
600 |
|
| 600 |
24 |
780 |
725 |
20-30 |
682 |
34-2 |
|
600 |
|
| sFb645Y-16C(RF) |
| 100 |
4 |
220 |
180 |
8-18 |
156 |
22-2 |
210 |
250 |
810 |
| 125 |
5 |
250 |
210 |
8-18 |
184 |
22-2 |
250 |
250 |
|
| 150 |
6 |
285 |
240 |
8-22 |
211 |
24-2 |
|
350 |
930 |
| 200 |
8 |
340 |
295 |
8-22 |
266 |
24-2 |
375 |
350 |
1600 |
| 250 |
10 |
405 |
355 |
12-26 |
319 |
26-2 |
470 |
350 |
1850 |
| 300 |
12 |
460 |
410 |
12-26 |
370 |
28-2 |
510 |
450 |
1850 |
| 350 |
14 |
520 |
470 |
16-26 |
429 |
30-2 |
570 |
450 |
1960 |
| 400 |
16 |
580 |
525 |
16-30 |
480 |
32-2 |
|
550 |
|
| 450 |
18 |
640 |
585 |
20-30 |
548 |
40-2 |
|
550 |
|
| 500 |
20 |
715 |
650 |
20-33 |
609 |
44-2 |
|
600 |
|
| 600 |
24 |
840 |
770 |
20-36 |
720 |
54-2 |
|
600 |
810 |
| sFb645Y-20(150lb)(RF) |
| 100 |
4 |
230 |
190.5 |
8-18 |
157.5 |
24-2 |
220 |
250 |
930 |
| 125 |
5 |
255 |
216 |
8-22 |
186 |
24-2 |
250 |
250 |
1600 |
| 150 |
6 |
280 |
241.5 |
8-22 |
216 |
25.5-2 |
270 |
350 |
1850 |
| 200 |
8 |
345 |
298.5 |
8-22 |
270 |
29-2 |
375 |
350 |
1850 |
| 250 |
10 |
405 |
362 |
12-26 |
324 |
30.5-2 |
470 |
350 |
1960 |
| 300 |
12 |
485 |
432 |
12-26 |
381 |
32-2 |
510 |
450 |
|
| 350 |
14 |
535 |
476 |
12-29.5 |
413 |
35-2 |
570 |
450 |
|
| 400 |
16 |
600 |
540 |
16-29.5 |
470 |
37-2 |
620 |
550 |
|
| 450 |
18 |
635 |
578 |
16-32.5 |
533.5 |
40-2 |
|
550 |
|
| 500 |
20 |
700 |
635 |
20-32.5 |
584.5 |
43-2 |
|
600 |
|
| 600 |
24 |
815 |
749.5 |
20-35.5 |
692.5 |
48-2 |
|
600 |
|
|
|
|
|
|
| |
| |
|
